A butterfly valve is a type of valve used to control the flow of a fluid through a pipe. It gets its name from the wing-like disc that rotates on a shaft within the valve body to open or close the passage. Butterfly valves are versatile and find applications in various industries, including water treatment, HVAC systems, chemical processing, food and beverage, and oil and gas. They are particularly useful in applications requiring quick operation and low-pressure drop.

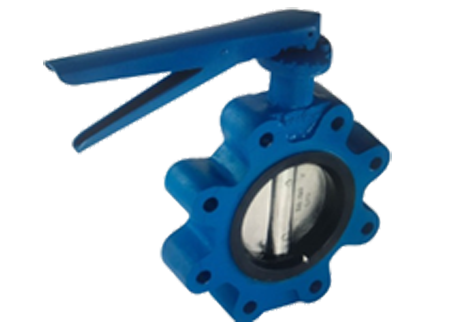

Lug Type Butterfly Valve Wafer Disc Type Lever Operated
| Size Range | 1½” (40 mm) To 12” (300 mm) |
|---|---|
| Body Material | C.I. / D.I. / C.S. / S.S. |
| Disc Material | D.I. / C.S. / S.S. |
| Pressure | PN 16 |
| Rubber Molding | Nitrile / EPDM |
| Operation | Lever Operated |

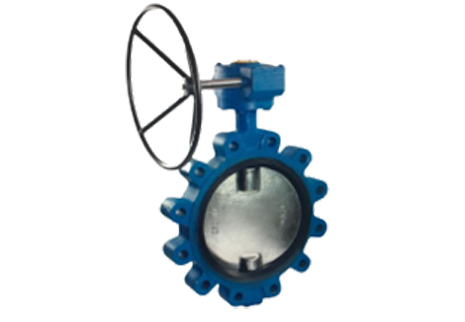

Lug Type Butterfly Valve Wafer Disc Type Gear Operated
| Size Range | 8” (200 mm) To 48” (1200 mm) |
|---|---|
| Body Material | C.I. / D.I. / C.S. / S.S. |
| Disc Material | D.I. / C.S. / S.S. |
| Pressure | PN 16 |
| Rubber Molding | Nitrile / EPDM |
| Operation | Gear Operated |
