Foot valves are installed on the suction side of pumps to prevent reverse flow from the pump back into the sump, ensuring the pump remains primed.
They also serve to block foreign particles from entering the pump through the suction pipe. These valves are designed specifically for use with clear water.

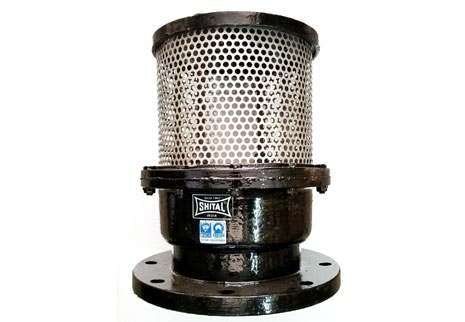

Metallic Foot Valve with Gun Metal Working Parts Lift-Up Type (Plunger Type)
Robust and durable construction ensures minimal head loss across the valve. Features perfectly flat seating surfaces for effective sealing. Effectively blocks foreign objects from entering the pump through the suction pipe.
| Size Range | 2” (50 mm) To 20” (500 mm) |
|---|---|
| Material | C.I. |
| Type | Lift-Up Type (Plunger Type) |
| Disc / Seat | Gun Metal / Stainless Steel |
| End Connection | Flanged End |
| Flange Drilling | Table D-E, PN-16, Class 150#, IS-1538 |
