Tamper proof air valve are specially designed to prevent water theft &water wastage by way of tampering the valve, moreoverthese valvesrequire less maintenance.
Air Valves are used for optimizing water distribution systems by facilitating air venting and air admission ervices in water supply and distribution pipelines which maintain smooth flow and prevent air blockages. The utilization of air valves helps to regulate air and maintain water flow by assisting in air control within pipelines, contributing to smoother operation and reducing the risks of blockages.
Tamper Proof Air Valve Single Chamber Flanged End
This air valve are used for automatically releasing/admitting air that may accumulate under pressure in a section of pipe line at the time of initial charging or draining of mains.
| Size Range | 1½” (40 mm) To 6” (150 mm) |
|---|---|
| Pressure Rating | PN 10 / PN 16 / PN 20 |
| MOC | D.I. / C.S. / S.S. / C.I. |
| Float | SS304 / SS316 |
| Gasket | EPDM Rubber |
| Flange Drilling | IS-1538 / Table D-E / Class150# |

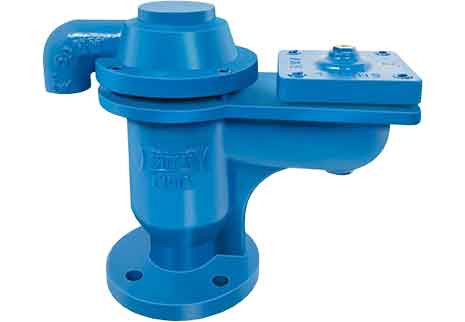

Tamper Proof Kinetic Air Valve Double Chamber Flanged End
This air valve being tamper proof prevents water theft & water wastage. This air valve are essentially the same as the conventional double air valves but with certain refinements and are suitable for high head pipe lines where high rates of air discharge and ventilation is required.
| Size Range | 2” (50 mm) To 4” (100 mm) |
|---|---|
| Pressure Rating | PN 10 / PN 16 / PN 20 |
| MOC | D.I. / C.S. / S.S. / C.I. |
| Float | SS304 / SS316 |
| Gasket | EPDM Rubber |
| Flange Drilling | IS-1538 / Table D-E / Class150# |
